How to Change 1991 Chevrolet V1500 Suburban Rain-X® Wiper Blades

Buy your new Rain-X® Weatherbeater® Wiper Blades

• Long lasting durability with a galvanized steel frame that prevents rust.
• All natural squeegee rubber that resists cracking, splitting and tearing caused by heat, cold and salt
• High quality traditional blade with friction reducers that meet or exceeds all OEM standards
• Just smooth consistently safe windshield wiping for your Chevrolet V1500 Suburban
• Buy your Rain-X Weatherbeater wipers for your 1991 Chevrolet V1500 Suburban $17.95 ea.

Prepare your Chevrolet V1500 Suburban for an easier wiper change

Turn ON your wipers then turn off your Chevrolet V1500 Suburban when the wipers are at their mid-way point on your windshield

Lift your wipers up from the windshield

With your wipers stopped midway on your windshield it should be easy to lift your wipers up and away from your windshield.
Your old wipers should stick out, away, from your windshield. Now allowing for easy access during the rest of the changing process.

Before you remove old wiper blades

Be sure to take note of which new blade length goes on which side.
Measure or just compare old blade length to the new wiper blades.
Then place the new blades on the correct side.

Remove old wiper blades

Your 1991 Chevrolet V1500 Suburban has a Large Pin (1/4 SP) type attachment for the windshield wipers to connect with.

Different wiper manufacturers use different style attachments for the Large Pin (1/4 SP). Look for a button to push and slide off the old wiper blade.

Connect the new Rain-X Weatherbeater Wiper Blades

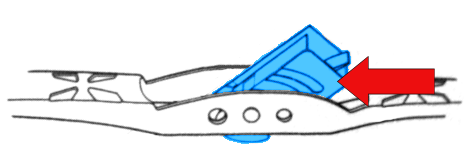

• First remove the pre-installed adapter by partially rotating the adapter up and then pushing it forward.


• Get the other adapter from the package.

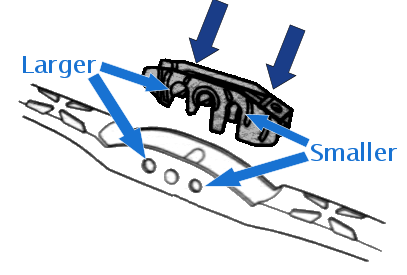

  Orient the adapter with the side with the tab is over the smaller hole on the wiper.
  Push firmly until the adapter clicks in to place on to the center pin of the wiper

• Rotate the adapter about 45 degrees so there is clearance for the pin arm to be inserted in the Large hole.

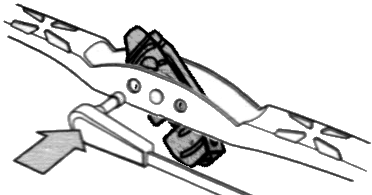

  Insert the pin through the large hole of the wiper blade.

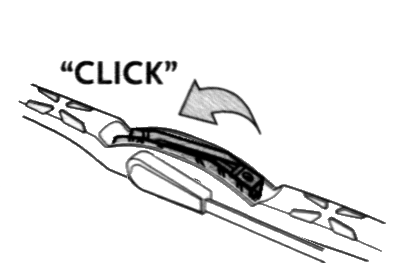

• Rotate the front part of the adapter down until it locks the arm pin in place.

• Be sure to REMOVE PLASTIC COVER FROM THE BLADE

• Check all connections...

  Tug on the wipers to double check that all wiper blades are locked on to the wiper arms.

• Lower wipers back down to their functional positions.

  Carefully lower your new wipers down to your windshield. Discard old wipers and packaging material.


Buy your new Rain-X® Latitude® Beam Blade wipers

• Great all-weather beam wipers from Rain-X
• Beam blades from Rain-X contour to the curvature of your windshield to provide even wiping pressure along the full length of the blade. That means there are no frozen wiper joints to cause uneven wiping and streaking.
• Just smooth consistently safe windshield wiping for your Chevrolet V1500 Suburban
• Buy your Rain-X Latitude Beam Blade wipers for your 1991 Chevrolet V1500 Suburban $26.99 ea.

Prepare your Chevrolet V1500 Suburban for an easier wiper change

Turn ON your wipers then turn off your Chevrolet V1500 Suburban when the wipers are at their mid-way point on your windshield

Lift your wipers up from the windshield

With your wipers stopped midway on your windshield it should be easy to lift your wipers up and away from your windshield.
Your old wipers should stick out, away, from your windshield. Now allowing for easy access during the rest of the changing process.

Before you remove old wiper blades

Be sure to take note of which new blade length goes on which side.
Measure or just compare old blade length to the new wiper blades.
Then place the new blades on the correct side.

Remove old wiper blades

Your 1991 Chevrolet V1500 Suburban has a large Pin (1/4") attachment for the windshield wipers to connect with.
Different wiper manufacturers use different style attachments for the large Pin attachment. Look for a button or a latch to lift and pull off the old wiper blade.

Connect the new Rain-X Latitude Beam Blade wipers

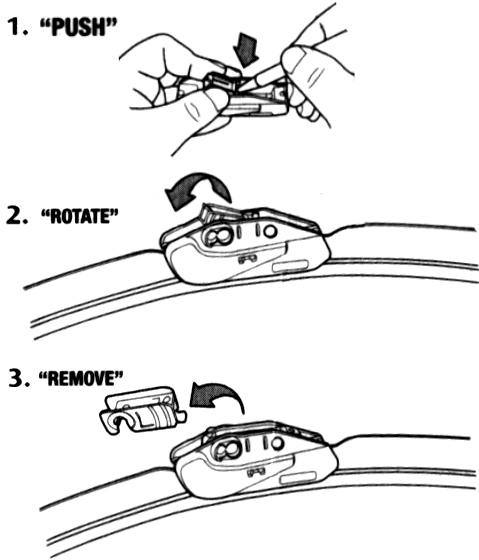

• You must remove the pre-installed "small J hook" adapter.
  Use a pen or screwdriver to pop it free and remove it.

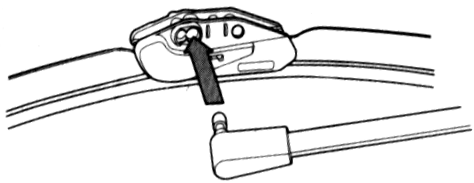

• Locate the Pin on the wiper blade arm and slide it through the larger of the double set of holes on the connector.

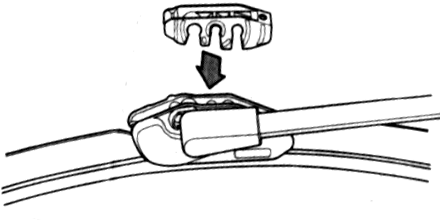

• Locate the Universal Adapter. Line up it's cutouts with the pins in the connector.

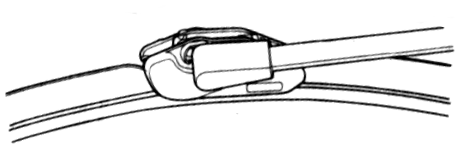

• Press firmly until you hear/feel the CLICK when it locks in place.

• Be sure to REMOVE PLASTIC COVER FROM THE BLADE

Check all connections...

Tug on the wipers to double check that all wiper blades are locked on to the wiper arms.

Lower wipers back down to their functional positions.

Carefully lower your new wipers down to your windshield. Discard old wipers and packaging material.
