How to Change 2018 Volkswagen Golf R Rain-X® Wiper Blades

Buy your new Rain-X® Longitude® Beam Blade wipers

• Extended durablility for long-lasting performance from Rain-X
• Smooth, chatter-free wipe for your Volkswagen Golf R's windshield
• Significant noise reduction and wind lift
• Buy your Bosch Evolution wipers for your 2018 Volkswagen Golf R$23.70 ea.

Prepare your Volkswagen Golf R for an easier wiper change

Turn ON your wipers then turn off your Volkswagen Golf R when the wipers are at their mid-way point on your windshield

Lift your wipers up from the windshield

With your wipers stopped midway on your windshield it should be easy to lift your wipers up and away from your windshield.
Your old wipers should stick out, away, from your windshield. Now allowing for easy access during the rest of the changing process.

Before you remove old wiper blades

Be sure to take note of which new blade length goes on which side.

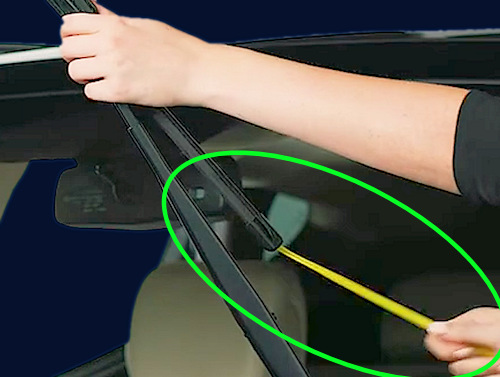

Measure or just compare old blade length to the new wiper blades.
Then place the new blades on the correct side.

Remove old wiper blades

Your 2018 Volkswagen Golf R has a Wide Push Button (nPTB) style attachment for the windshield wipers to connect with.
Different wiper manufacturers use different style attachments for the Narrow Push Button (PTB) style attach type. With the arm lifted arm away from windshield: push the button then pull off the old wiper blade.

Connect the new Rain-X Longitude beam wipers

• To install your new Rain-X Longitude wiper blade on a Narrow Push Button (nPTB) arm the you must determine if you have Narrow Push Button (nPTB):


  Lets confirm your wiper arm before we continue.

  A penny will fit in a Narrow Push Button arm.
  But a penny Will fit in a Narrow Push Button arm.



  Only continue if you have a Narrow Push BUTTON arm

  1. Narrow Push Button (nPTB) arm:
     To continue you must remove the adapter:

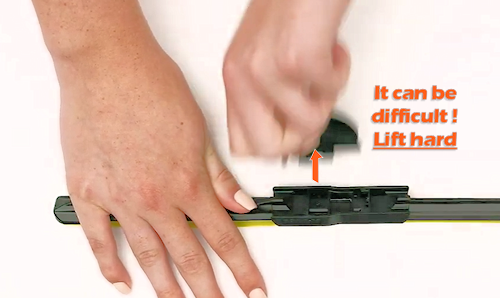

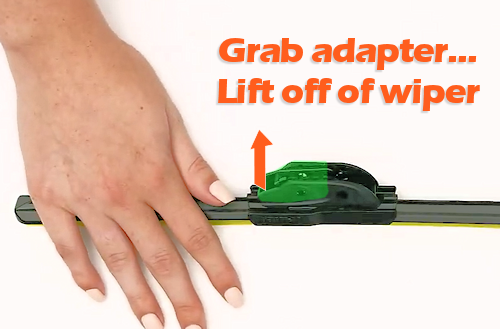

     Lift front end of adapter to remove:

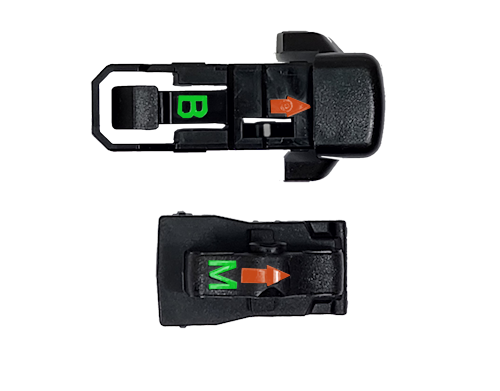

  2. In the package locate the adapter "B" and the connector "M":
     Note: Align the arrows in the SAME direction:

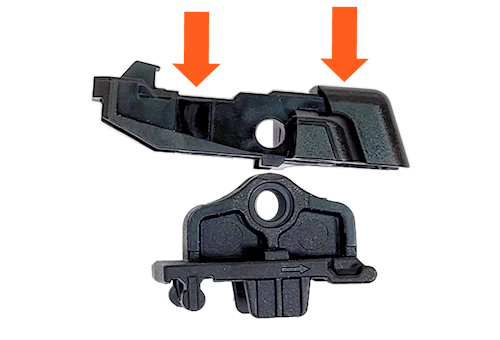

  3. Place the "B" adapter on TOP of the "M" connector and press down:

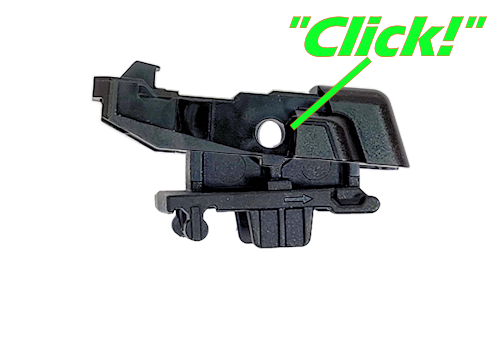

  4. Press until they "Click" in to place:

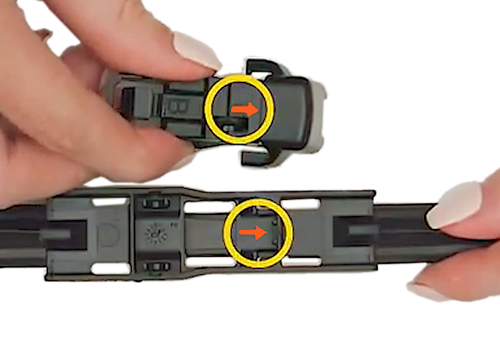

  5. Next, Align the assembeled "B" adapter so that the arrow on the top is pointing in the SAME direction as the arrow on the base wiper:

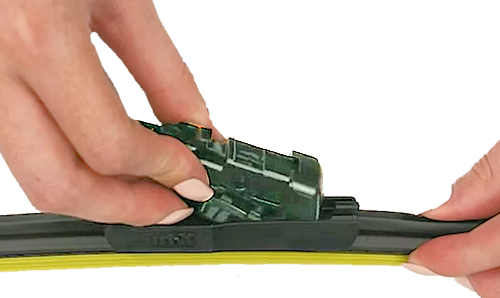

  6. Insert the front of the "B" adapter in to the slot in the base:

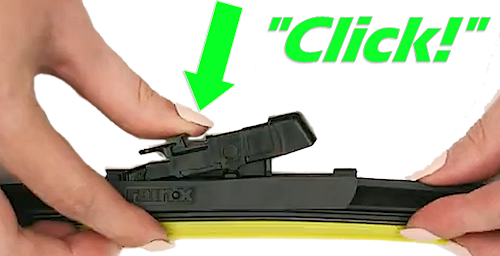

  7. Press firmly until it "Clicks" and locks in place:

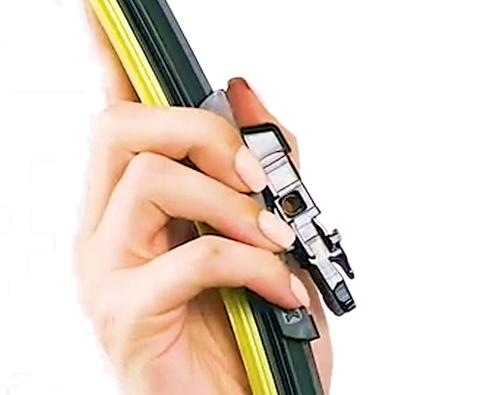

  8. The wiper is ready to install. Tilt the adapter up:

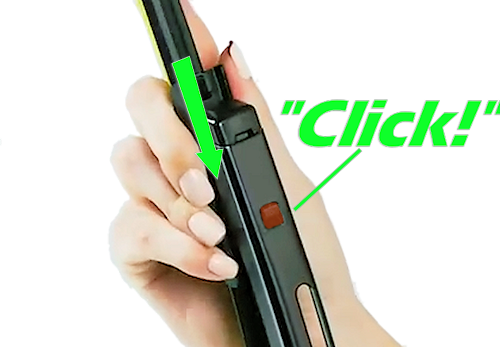

  9. Slide in to the opening of the wiper arm until the Lock Button "Clicks" locked:



  10. REMEMBER: Remove the blade edge cover:


  11. Do the same procedure for the other wiper blade.

Check all connections...

Tug on the wipers to double check that all wiper blades are locked on to the wiper arms.

Lower wipers back down to their functional positions.

Carefully lower your new wipers down to your windshield. Discard old wipers and packaging material.

Buy your new Rain-X® Transparency+ Beam Blade wipers

• Great all-weather beam wipers from Rain-X with Blade Change Indicator built-in
• Beam blades from Rain-X contour to the curvature of your windshield to provide even wiping pressure along the full length of the blade. That means there are no frozen wiper joints to cause uneven wiping and streaking.
• These beam blades are coated with the famous Rain-X water beading technology
• Just smooth consistently safe windshield wiping for your Volkswagen Golf R
• Buy your Rain-X Transparency+ Beam Blade wipers for your 2018 Volkswagen Golf R$26.15 ea.

Prepare your Volkswagen Golf R for an easier wiper change

Turn ON your wipers then turn off your Volkswagen Golf R when the wipers are at their mid-way point on your windshield

Lift your wipers up from the windshield

With your wipers stopped midway on your windshield it should be easy to lift your wipers up and away from your windshield.
Your old wipers should stick out, away, from your windshield. Now allowing for easy access during the rest of the changing process.

Before you remove old wiper blades

Be sure to take note of which new blade length goes on which side.
Measure or just compare old blade length to the new wiper blades.
Then place the new blades on the correct side.

Remove old wiper blades

Your 2018 Volkswagen Golf R has a Narrow Pinch Tab Button (Narrow PTB)(Narrow Push Button) attachment for the windshield wipers to connect with.

Different wiper manufacturers use different style attachments for the Narrow Pinch Tab Button (Narrow PTB)(Narrow Push Button). Look for a button to push and slide off the old wiper blade.

Connect the new Rain-X Transparency+ Beam Blade wipers

• First pry off the adapter cover. Slide thumb nail under the corner of the cover and pull off with your other hand.

  Remove and discard outer cover.

• Next you remove the BLUE connector. Rotate entire universal connector up and pinch together the front facing tabs.

  Use your other hand to PUSH DOWN and remove the Blue spacer.

• Guide both sets of rear tabs in to the end of the wiper arm
  Slide the blade down the adapter channel until it CLICKS.
  After the CLICK the wiper is locked in to place.

• Be sure to REMOVE PLASTIC COVER FROM THE BLADE

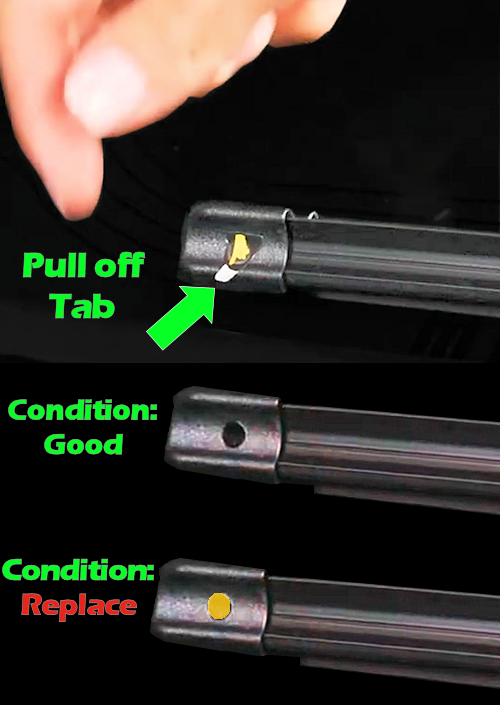

• Now activate the "Blade Change Indicator" by removing the sticker:
  Over time the black dot will turn YELLOW when it's time to change your wiper blade.


• Check all connections...

  Tug on the wipers to double check that all wiper blades are locked on to the wiper arms.

• Lower wipers back down to their functional positions.

  Carefully lower your new wipers down to your windshield. Discard old wipers and packaging material.


• Finally Activate the Rain-X Water Repellency Technology.

  • Be sure your windshield is clean and dry.
  • Turn ON your new wiper blades. Run them DRY on your windshield for 2-3 minutes.
  • Then briefly spray your washer fluid and watch for water beading. That indicates the technology has been activated.
